DA & CDC documentation · Sydney NSW
DA & CDC Plans for Homes, Extensions, Renovations and Small Developments Across NSW
Fixed fee residential drafting packages with Revit 3D visualisation included. Clear documentation, practical advice and support throughout the approval process for homeowners, builders and small developers.

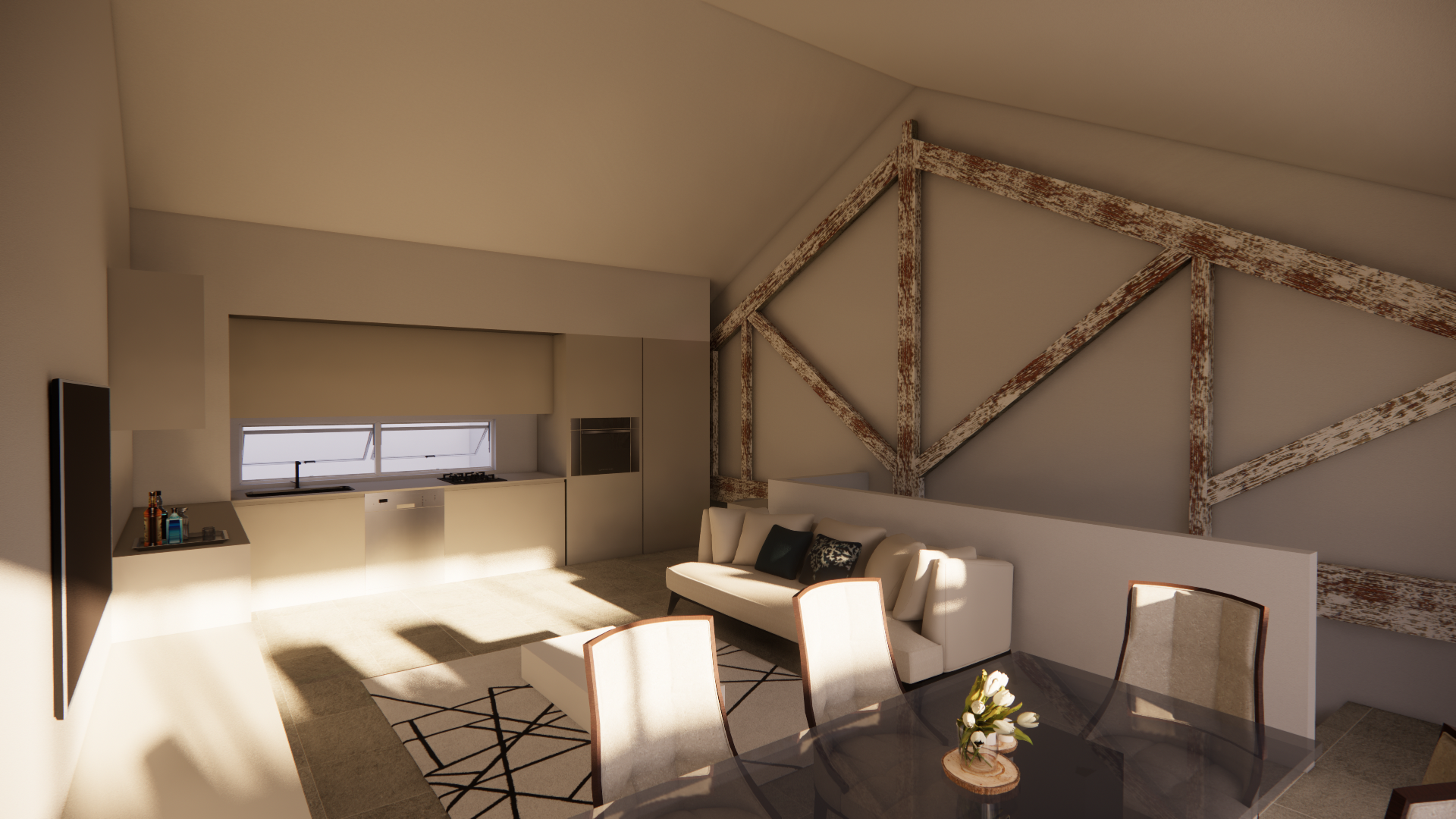

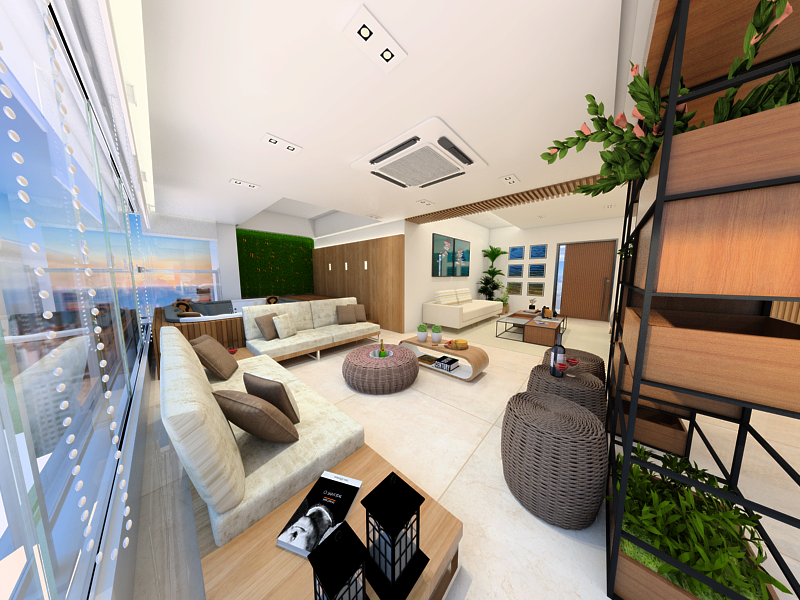

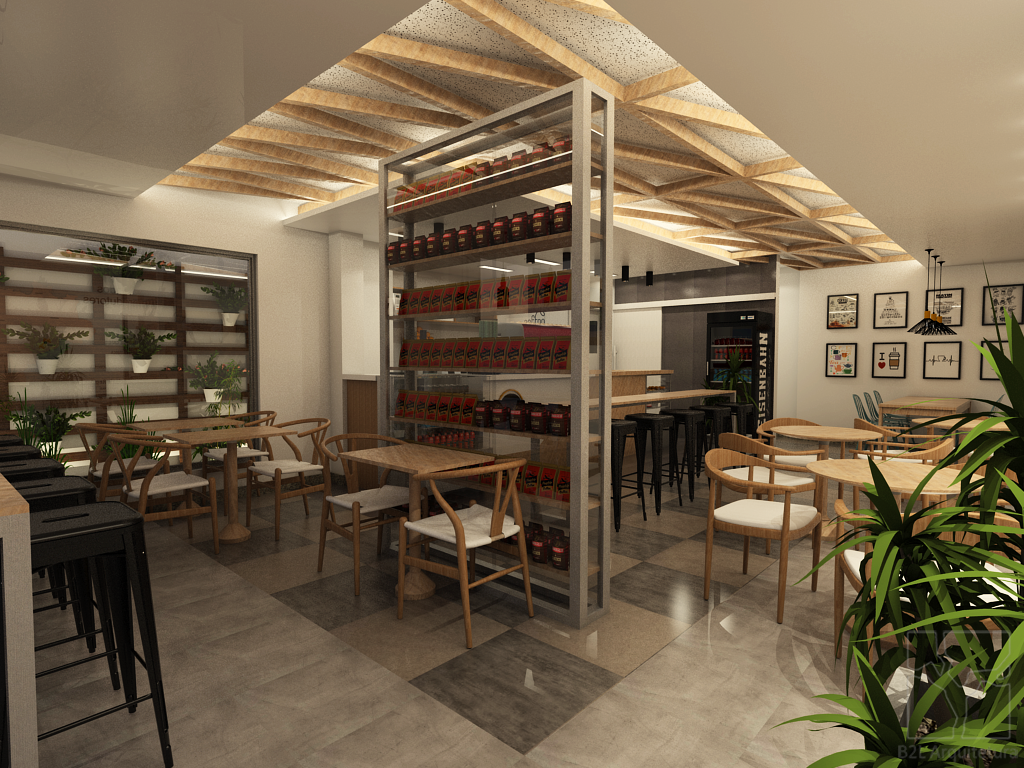

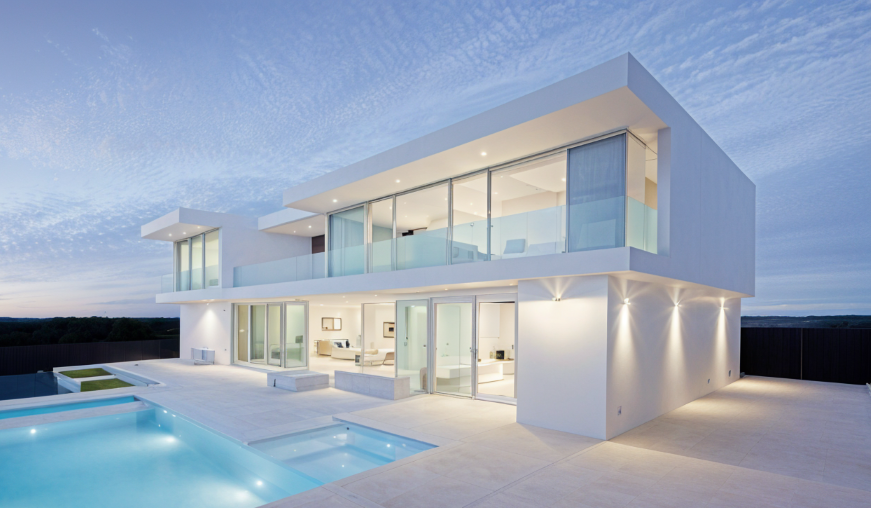

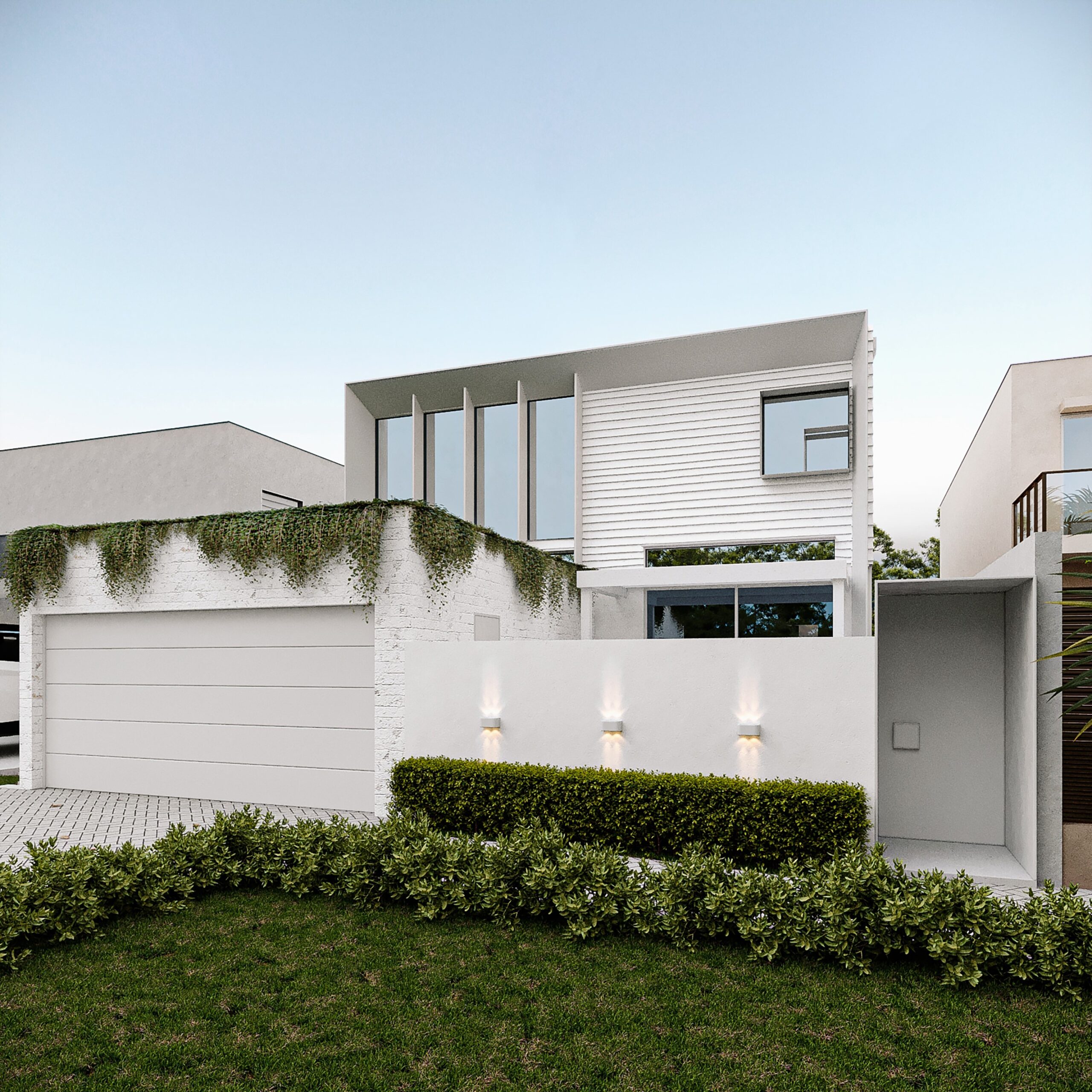

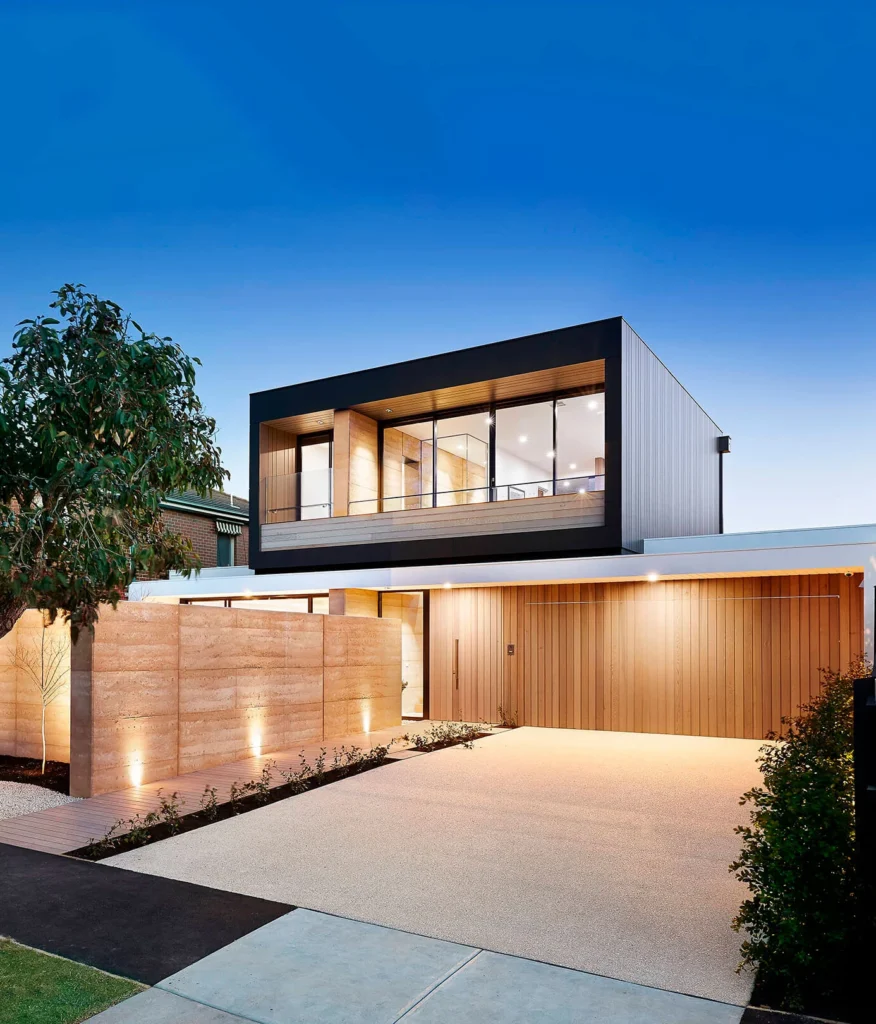

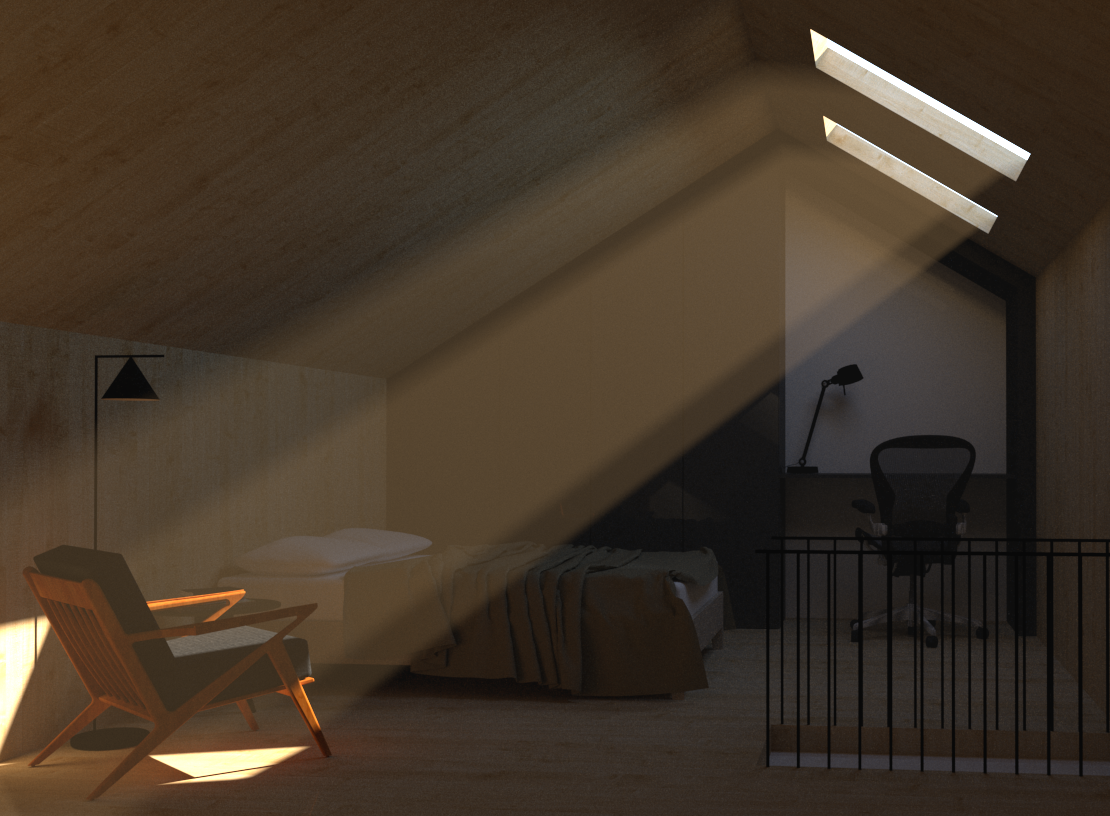

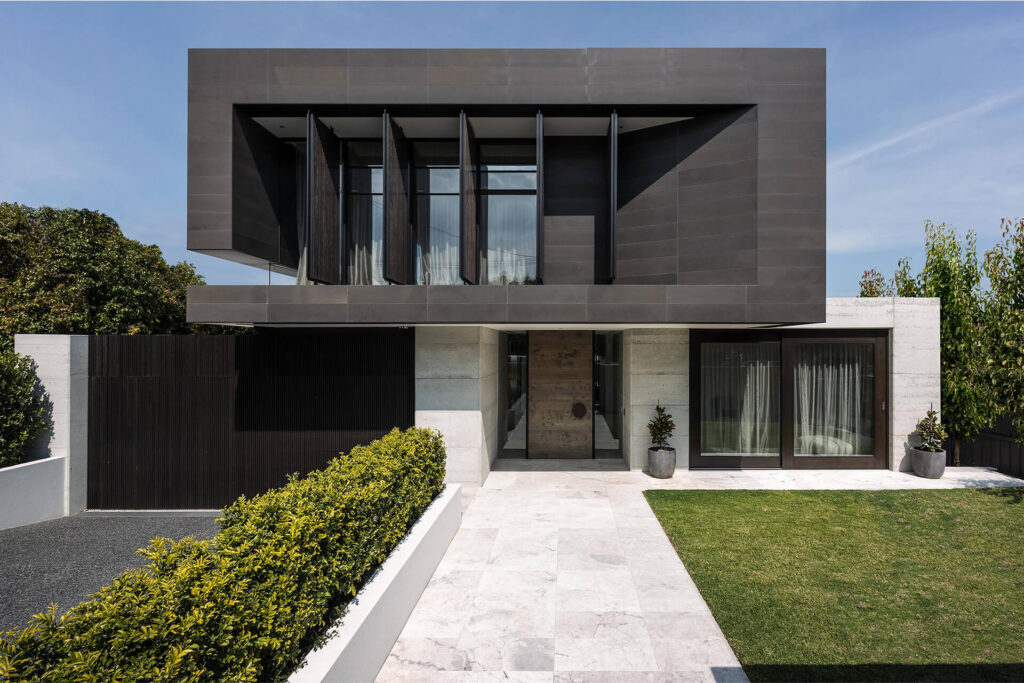

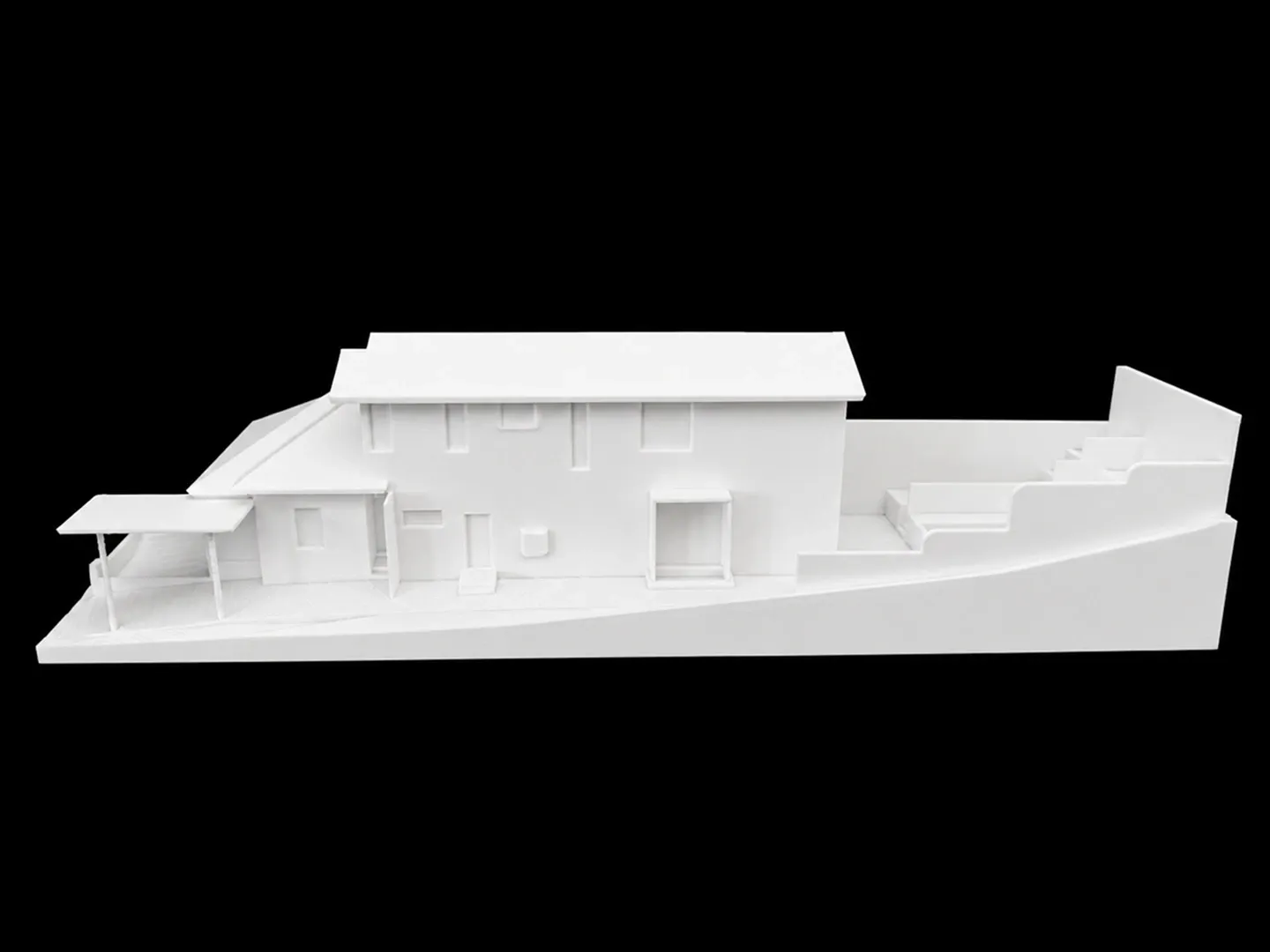

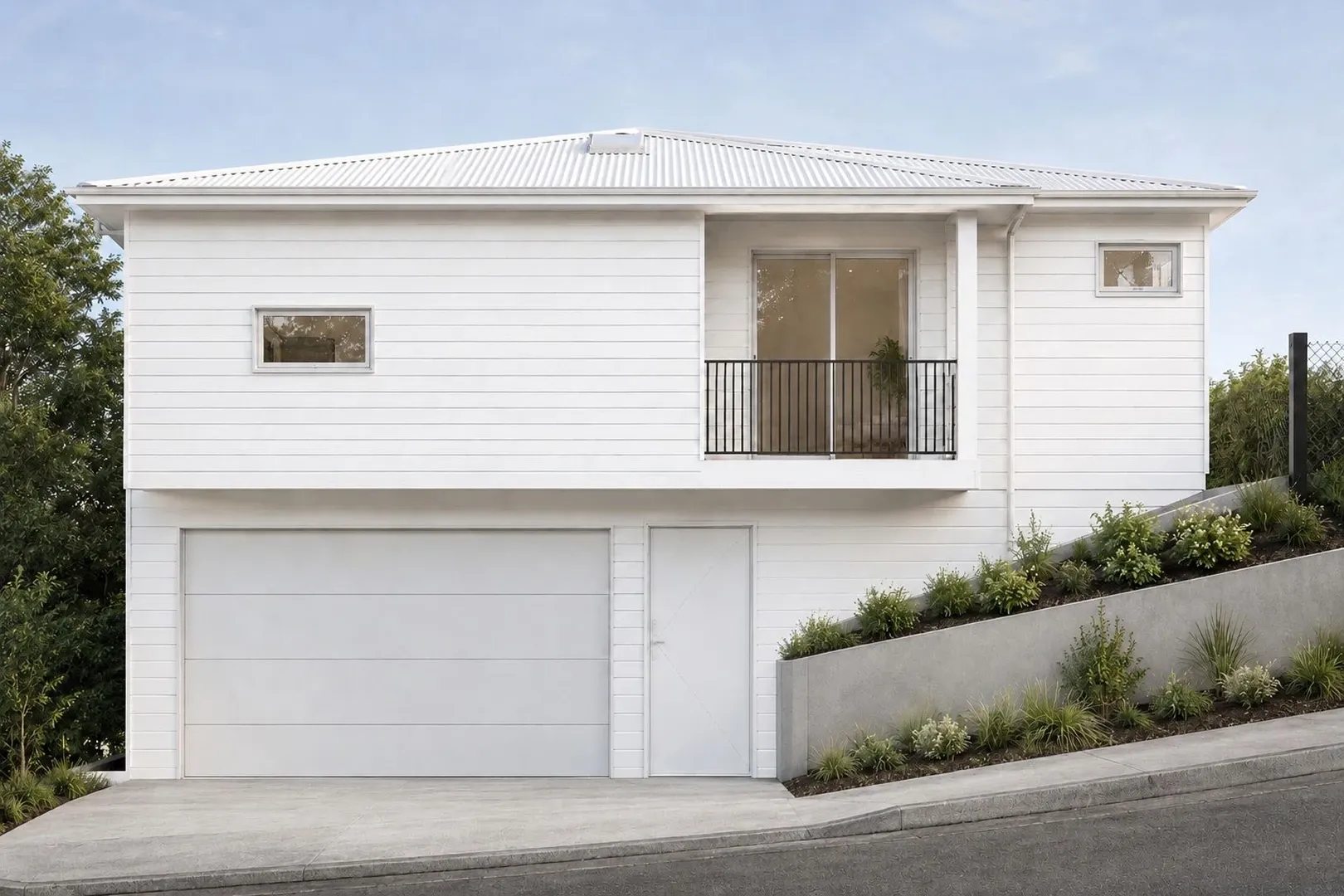

Recent Work
Selected projects across NSW
Services
What we document
Four core service areas, all delivered as council-ready packages with 3D Revit visualisation included.
01 New Home Plans Complete documentation packages for new residential homes, including site plans, floor plans, elevations and Revit 3D modelling. 02 Extensions & Additions Documentation for first floor additions, rear extensions and alterations designed to integrate with existing homes and approval requirements. 03 Renovations Internal and external renovation documentation prepared to suit the approval pathway and project requirements. 04 Small Developments Documentation packages for dual occupancies, subdivisions and small residential developments prepared with approval requirements in mind.
Approach
Approval-ready. Built around 3D
We work in Revit, end-to-end, so decisions are made with sightlines, scale and light, not assumptions.
— 01 8+ years of NSW approval expertise Practical experience preparing DA, CDC and residential documentation across NSW.
— 02 Revit 3D visualisation included Every drawing package includes a 3D model to help clients understand their project before approval.
— 03 Approval knowledge We understand the approval process and prepare documentation that supports a smoother path from concept to approval.
— 04 Clear scope, fixed fee Every project starts with a clearly defined scope and fixed fee proposal, so you understand exactly what is included before work begins.
Process
From enquiry to council-ready
A simple, predictable four-step path. You get a fixed quote upfront and a clear timeline.
01 / 04
Submit your project
A short form with the basics — project type, location, and what you want to build.
5 minutes
02 / 04
Free assessment
We review feasibility and the right approval pathway, then send a scope plus fixed quote.
Within 24 hours
03 / 04
Approve your proposal
You review the scope, confirm the proposal and we begin preparing your documentation.
Same week
04 / 04
Documentation complete
A complete documentation package prepared for consultant coordination, certification or submission, depending on your project.
Ready for the next stage
About us
ABOUT KL DESIGN & DRAFTING
KL Design & Drafting is a residential building design studio specialising in DA, CDC and construction
documentation for new homes, extensions, renovations and small residential developments across NSW.
Backed by over eight years of Australian industry experience, we prepare practical Revit documentation packages
with 3D visualisation included, helping homeowners, builders and small developers move from concept to approval
with confidence.
reviews
What clients say Google Review
1 / 4
Coverage
AREAS WE SERVICE
We provide residential drafting services throughout Sydney and selected regional NSW. Most projects can be managed remotely, allowing us to support homeowners, builders and small developers across a wide range of locations.
Sydney Metropolitan
Inner West · Eastern Suburbs · Lower North Shore · Hills District · Western Sydney · South West Sydney ·
St George · Sutherland Shire
Regional NSW Hunter Region · Mid North Coast · Northern Rivers
Looking for a building designer near you? We prepare residential documentation across Sydney and selected
regional NSW, with most projects managed remotely.
Western
Sydney
The Hills
Inner West
South West
Sydney
Sutherland
Shire
South
Sydney
Northern
Rivers
Mid North
Coast
Hunter
Region
FAQ
Common questions
Five things we get asked the most, covering the difference between DA and CDC, timelines, scope, and pricing.
Not always. Many residential projects can be documented by a building designer or drafting professional, depending on the project scope and approval pathway. If specialist input is required, we will identify this early and advise accordingly.
Every project is quoted as a fixed fee, so there are no surprises. Pricing depends on the scope, the site and the approval pathway. After a free assessment we send a written quote with a clear list of what's included — you approve it before any work begins.
The basics are enough to begin: your project type, the site address or suburb, and a short description of what you'd like to build. Any existing plans, a survey or a Section 10.7 certificate help us move faster, but they aren't required upfront.
Yes. We document residential projects across Greater Sydney and selected regional NSW, including the Hunter Region, Mid North Coast and Northern Rivers. Most projects are managed remotely, so distance is rarely an obstacle.
Start a project
Tell us about your project
Enquiry sent — thank you
We've received your details and will be in touch within 24 hours, usually within an hour, with a feasibility note and a fixed quote.
